VERSATILE, EFFICIENT, INNOVATIVE

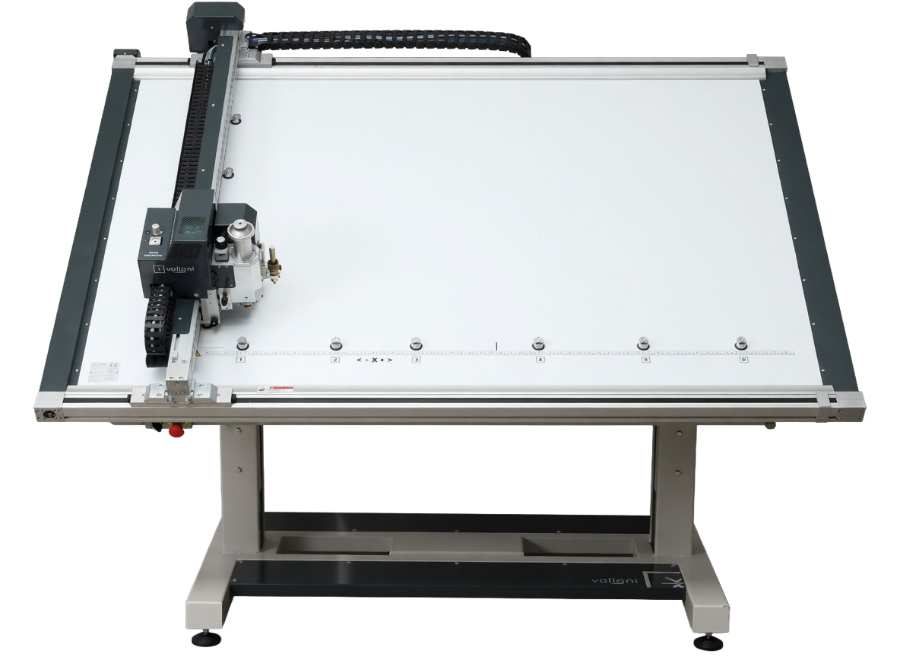

Nexus Edge Series

OUR BEST SELLER!

The Nexus Edge brings precision, versatility, and efficiency to professional framing. Designed to streamline everyday production and expand your creative possibilities, it delivers the cutting performance you need to bring every detail to life.

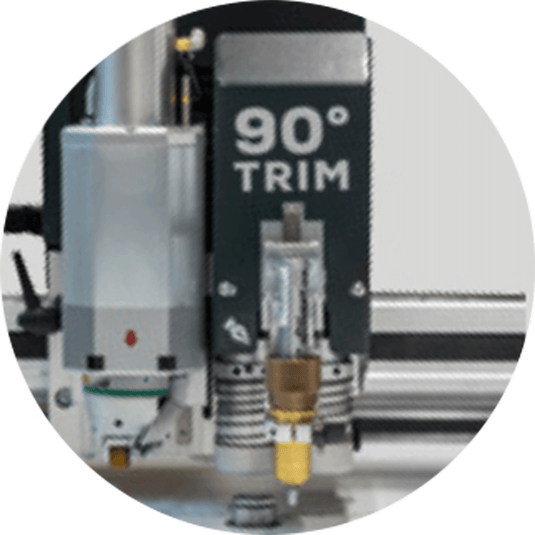

Interchangeable Heads

Nexus Edge is able to perform 40° and 45° beveled cut, pen decoration and external trimming without any interruption and with an unparalleled precision, significantly reducing the cutting time and workflow.

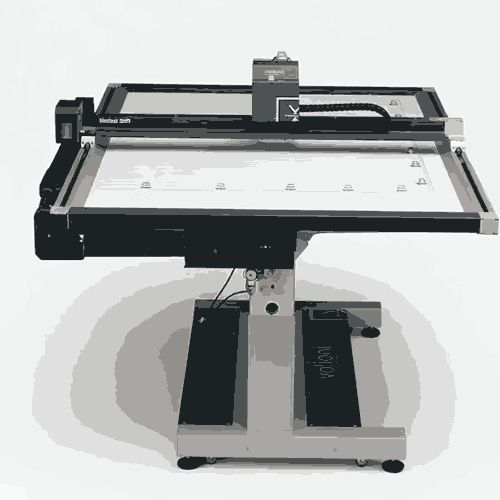

Multi-Position Stand

Thanks to the multi-position stand, space is no longer a problem. You can adjust it horizontally, angled or vertically. Choose your favorite position.

Interchangeable Heads

Nexus Edge is able to perform 40° and 45° beveled cut, pen decoration and external trimming without any interruption and with an unparalleled precision, significantly reducing the cutting time and workflow.

Multi-Position Stand

Thanks to the multi-position stand, space is no longer a problem. You can adjust it horizontally, angled or vertically. Choose your favorite position.

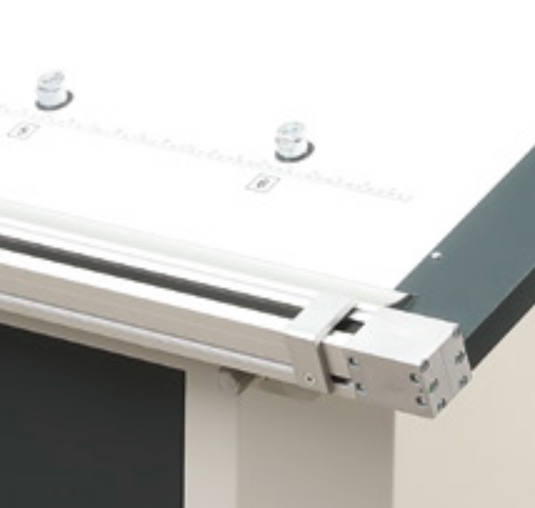

Edge-To-Edge Cutting

Automatic End-Trimmer*. Nexus Edge can cut multiple mats openings with the cutting angle you prefer, add a decorative pen and cut the external edge without tool change in one uninterrupted operation!

Button Clamps

The Button Clamp system allows you to trim your mat-board right to the edges, optimizing the material yield and leave no marks  on your matboard.

Edge-To-Edge Cutting

Automatic End-Trimmer*. Nexus Edge can cut multiple mats openings with the cutting angle you prefer, add a decorative pen and cut the external edge without tool change in one uninterrupted operation!

Button Clamps

The Button Clamp system allows you to trim your mat-board right to the edges, optimizing the material yield and leave no marks  on your matboard.

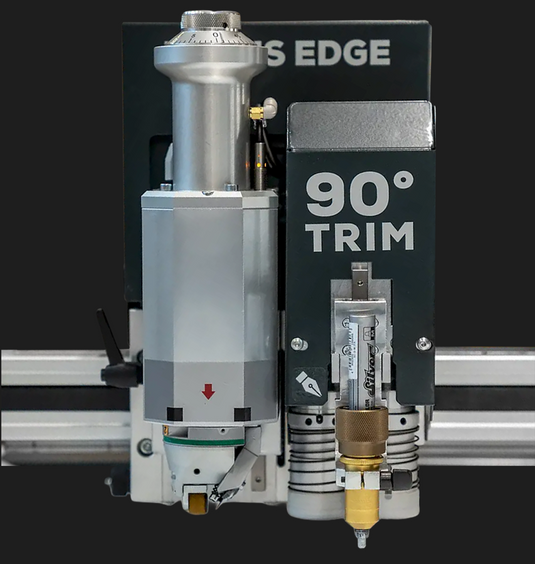

3-IN-1

CUT, DRAW, & TRIM

Nexus Edge can be equipped with up to three tools simultaneously:

3 Heads Simultaneously

Bevel Cutting Tool

3 Heads Simultaneously

Bevel Cutting Tool

90° Trimming Tool

Pen Drawing Tool

90° Trimming Tool

Pen Drawing Tool



Nexus Edge Builder

Configure Your Nexus Edge

Choose your upgrades and see exactly what your machine includes.

1 Your starting point

Included

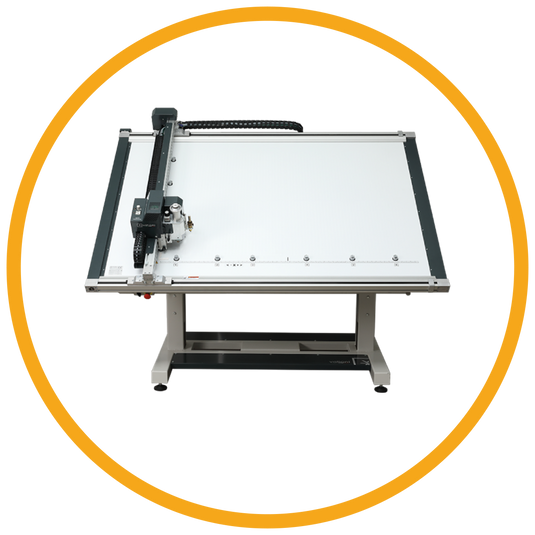

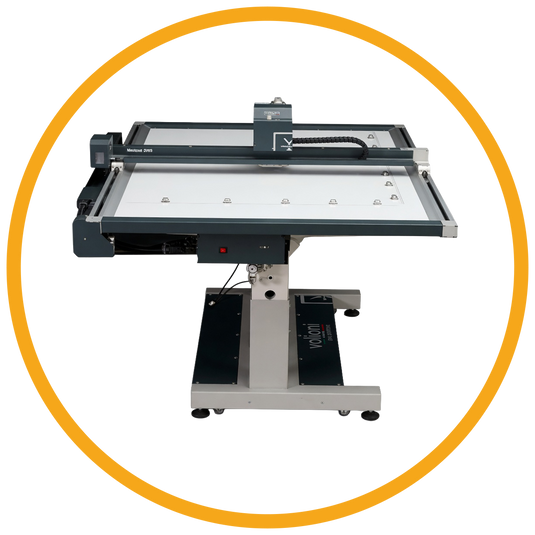

Nexus Edge

Start with the standard machine and choose the options that fit your needs.

2 Machine Upgrades
PLUS Performance Most Popular Up to 50% faster cutting with higher-performance motors.
Vacuum Assist Vacuum table holds material securely during processing.
3 Tools, Add-ons & Coverage
Essential PackageIncluded • 40° Green Cutting Head • Fixed 90° Trimming Tool • Multiple-Position Stand • V-Studio Software • Stainless Steel Slip-sheet (non-vacuum, standard size machines only) • 100 Extended Life Blades • 5 Year Factory Warranty on all non-wear parts. • 1 year manufacture warranty of computer system. (All warranties begin on the date of shipment)
Complete Package Nexus Edge with 3-in-1 head upgrade, stainless steel slip sheet, space-saving multi-position stand. 40° Green Cutting Head, 40° Grey Bevel Head, 45° Blue Bevel Head, 90° Trimming tool Kit with Mat Stylus Deluxe Pen Head 200 Extended Life Blades Multiple-Position Stand V-Studio Software Stainless Steel Slip-sheet (non-vacuum, standard size machines only) 5 Year Factory Warranty on all non-wear parts. 1 year manufacture warranty of computer system. (All warranties begin on the date of shipment. Geminus V has 1 year factory warranty on all non-ware parts.
Valiani Care+ One year of expert technical support for your Valiani.
5 Year Limited WarrantyIncluded The longest warranty in the industry. Terms and conditions apply.

Your configuration

Nexus Edge

The standard Nexus Edge platform — precision cutting, drawing and trimming without added speed or vacuum upgrades.

PLUS Performance
Added
Vacuum Assist
Not added
Essential Package
Included
Complete Package
Not added
Valiani Care+
Not added
5 Year Limited Warranty
Included
Flexible financing options are available to help make your Valiani investment easier to manage. Learn More →
What the name means

EDGE = the standard Nexus Edge platform.

BASE Base platform
PLUS Faster performance
V Vacuum table

TECHNICAL SPECIFICATIONS

NEXUS EDGE “V” designates the vacuum configuration.
Cutting Area 60" × 40" (1525 × 1016 mm)
Max Speed 42.6 in/sec (1083 mm/sec)
Power Requirements Single-Phase 230V 50Hz | 208/230V 60Hz
Single-Phase 230V 50Hz | 208/230V 60Hz (Vacuum Series)
Tools Available 40°, 45°, 90°, Embossing, Creasing Tool,
Pen Drawing Tool and 90° Trimming Tool
Cutting Capacity 0.20" (5 mm) 0.26" with Trimming Tool (6.6 mm)

Nexus Edge

Cutting Area
60" × 40" (1525 × 1016 mm)
Max Speed
42.6 in/sec (1083 mm/sec)
Power
Single-Phase 110V 60Hz | Dedicated Circut
Vacuum Series: Single-Phase 230V 50Hz | 208/230V 60Hz
Tools
40°, 45°, 90°, Embossing, Creasing Tool, Pen Drawing Tool and 90° Trimming Tool
Capacity
0.20" (5 mm)
0.26" with Trimming Tool (6.6 mm)
Valiani Nexus Edge catalog VIEW CATALOGS

Compatible With

Materials

  • Matboard up to 5 mm
  • Foam Board up to 5 mm
  • Corrugated Board
  • Grey Board
Materials

Designed For

Main Applications

  • Multi-layer Panels
  • Multiple Matboards
  • V-groove
  • Letters, Texts & Clip Art
  • Decorations
  • Conservation Matboards
  • Shadow Box / Foam Strips / Spacers
Main applications

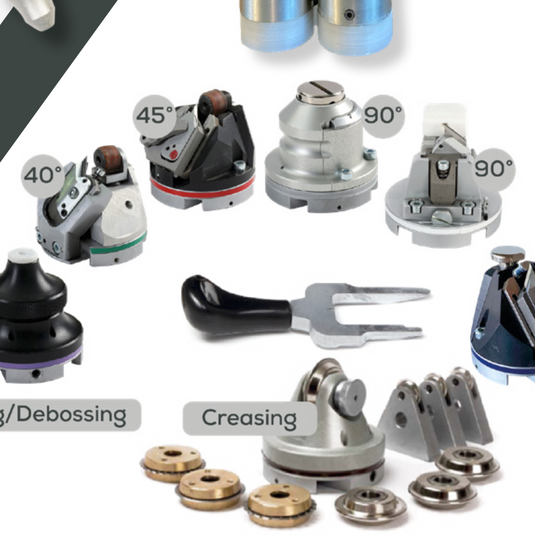

Interchangeable Heads

Expand your toolbox - Purchase new heads today!

90º Straight Cut

40° Bevel Cut

45° Bevel Cut

45° Bevel Cut

Creasing/Scoring

90° Straight Cut

Embossing/Debossing

Is the Nexus Edge the right machine for you?



Compare Machines

Nexus Edge
Nexus Edge Plus
Maximus
Geminus
Gladius

Ideal For

Custom framing and every day production

High-volume framing shops

Ultimate Production

Industrial Production

Oversized mat boards & custom framing

Performance

Professional performance

Up to 50% Faster Production

Maximum industrial performance

Continuous 24/7 high-speedproduction

Professional performance

Vacuum Table

Optional

Optional

Optional

Optional

Standard

3-in-1 Workflow

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Specialty Applications

Single/multiple openings, V-grooves, decorative cuts

Single/multiple openings, V-grooves, decorative cuts

Thicker material, foam boards, gatorboards, corrugated

Thicker material, foam boards, gatorboards, corrugated

XXL mat boards, nesting, multi-layer mats

Tool System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Material Thickness

Up to 6.6mm (0.26”)

Up to 6.6mm (0.26”)

Up to 20mm (.75”)

Up to 20mm (.75”)

Up to 6.6mm (0.26”)

Workstations

Single

Single

Dual

Dual

Single

Working Format

Standard

Standard

Large Format

Large Format

XXL

← GLADIUS EXPLORE ALL MODELS MAXIMUS →

Is this the right machine for you?

FAQs

Yes, it has a 5 year limited warranty, which happens to be the longest warranty in the industry.

  • Nexus Edge is the foundation base model and most popular with framers
  • Nexus Edge V is simply the Nexus Edge but with a Vacuum table
  • Nexus Edge Plus the enhanced version of the Nexus Edge model with speeds up to 50% faster

Yes, please use the links below:
