PROFESSIONAL, VERSATILE, PRECISE

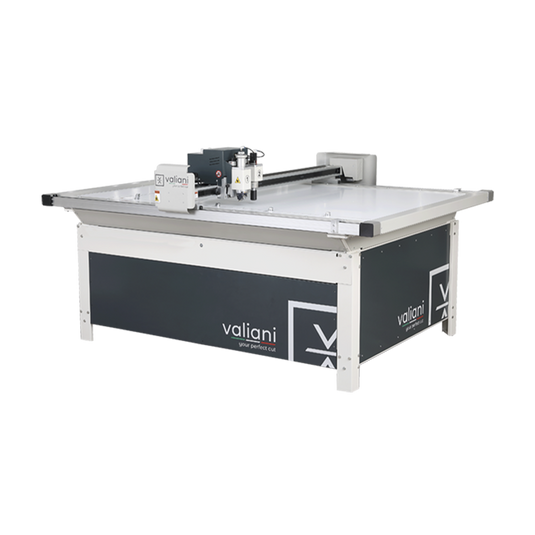

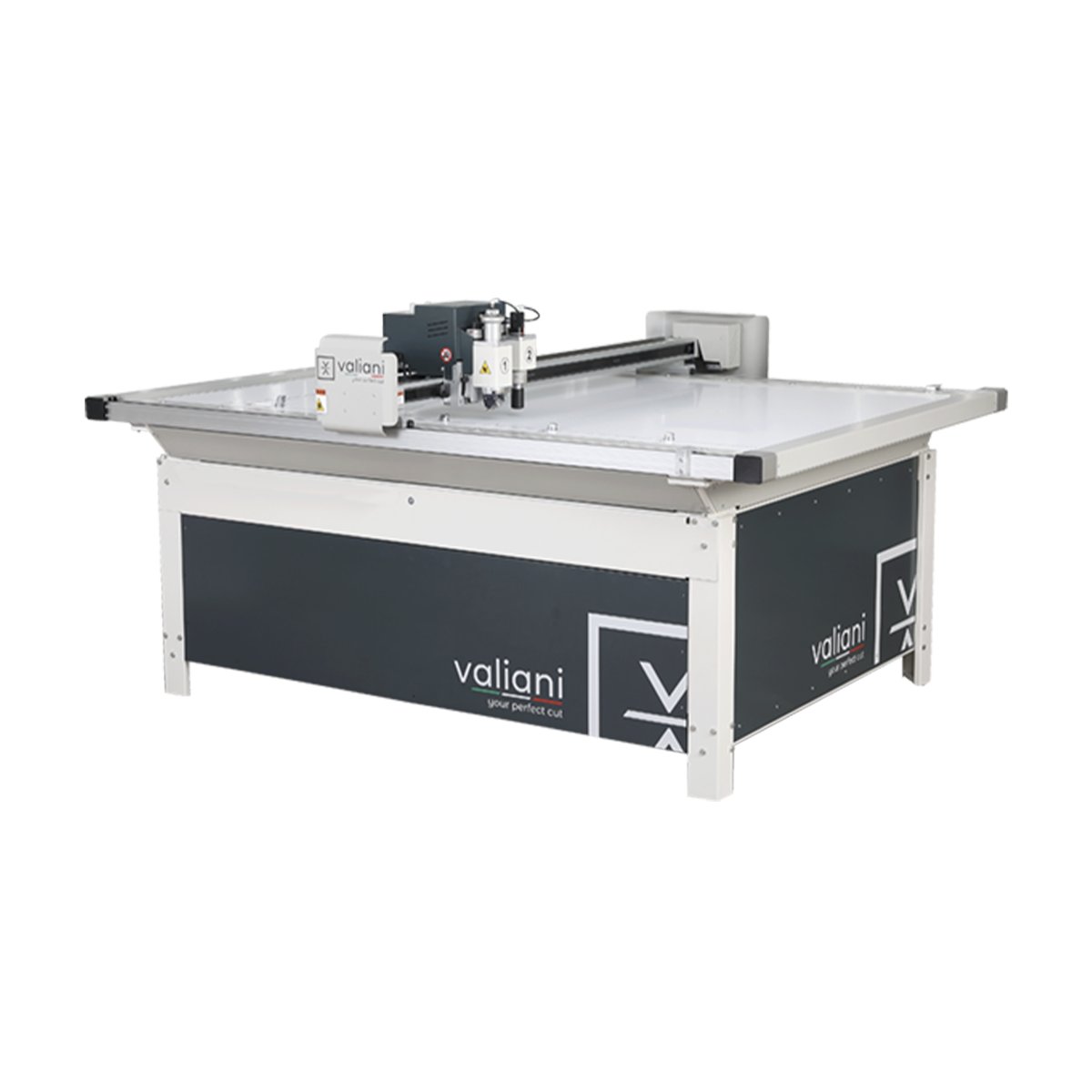

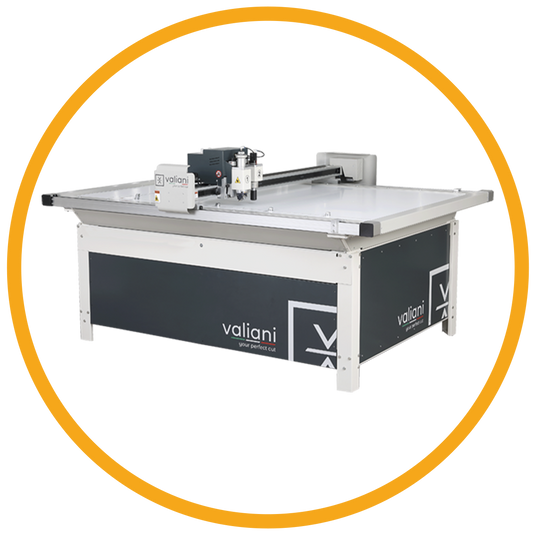

Maximus Series

Maximus brings dual-head precision to medium- and high-volume framing, fine art printing, and art conservation. Built for demanding production, it makes straight and bevel cuts without downtime and expands into packaging with an optional pneumatic oscillating knife.

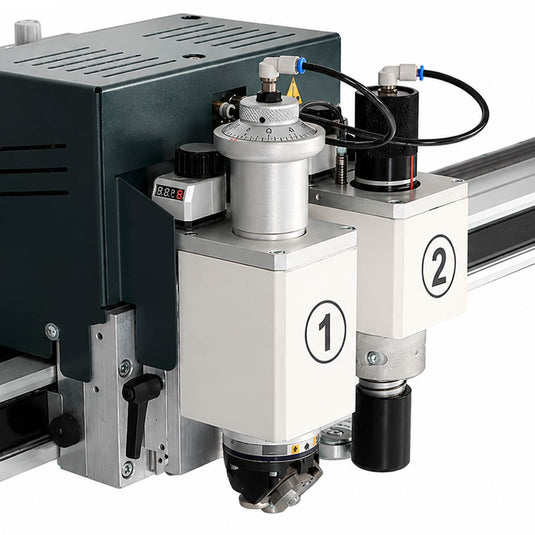

Two Independent Heads

Two independent cutting heads make straight and bevel cuts without downtime. Compatible tools include 40°, 45°, and 90° cutting tools, embossing, creasing, and drawing tools.

Heavy-Duty Construction

Built with proven components for lasting precision, Maximus supports medium- to high-volume framing, fine art printing, and the restoration and conservation of works of art.

Two Independent Heads

Two independent cutting heads make straight and bevel cuts without downtime. Compatible tools include 40°, 45°, and 90° cutting tools, embossing, creasing, and drawing tools.

Heavy-Duty Construction

Built with proven components for lasting precision, Maximus supports medium- to high-volume framing, fine art printing, and the restoration and conservation of works of art.

Optional Oscillating Tool

Add a pneumatic oscillating knife for materials up to 0.79" (20 mm) thick with a vacuum model, expanding your capabilities in framing, packaging, and visual communication.

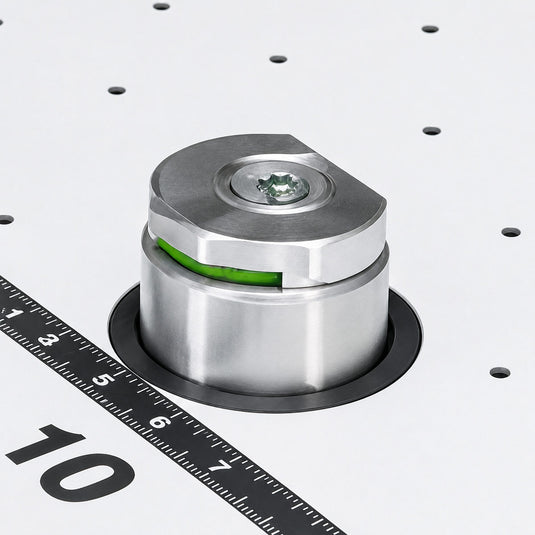

Clamps or Vacuum

Standard Maximus models use pneumatic button clamps. Maximus V models add a vacuum-assisted table to hold matboard and other materials securely during cutting.

Optional Oscillating Tool

Add a pneumatic oscillating knife for materials up to 0.79" (20 mm) thick with a vacuum model, expanding your capabilities in framing, packaging, and visual communication.

Clamps or Vacuum

Standard Maximus models use pneumatic button clamps. Maximus V models add a vacuum-assisted table to hold matboard and other materials securely during cutting.

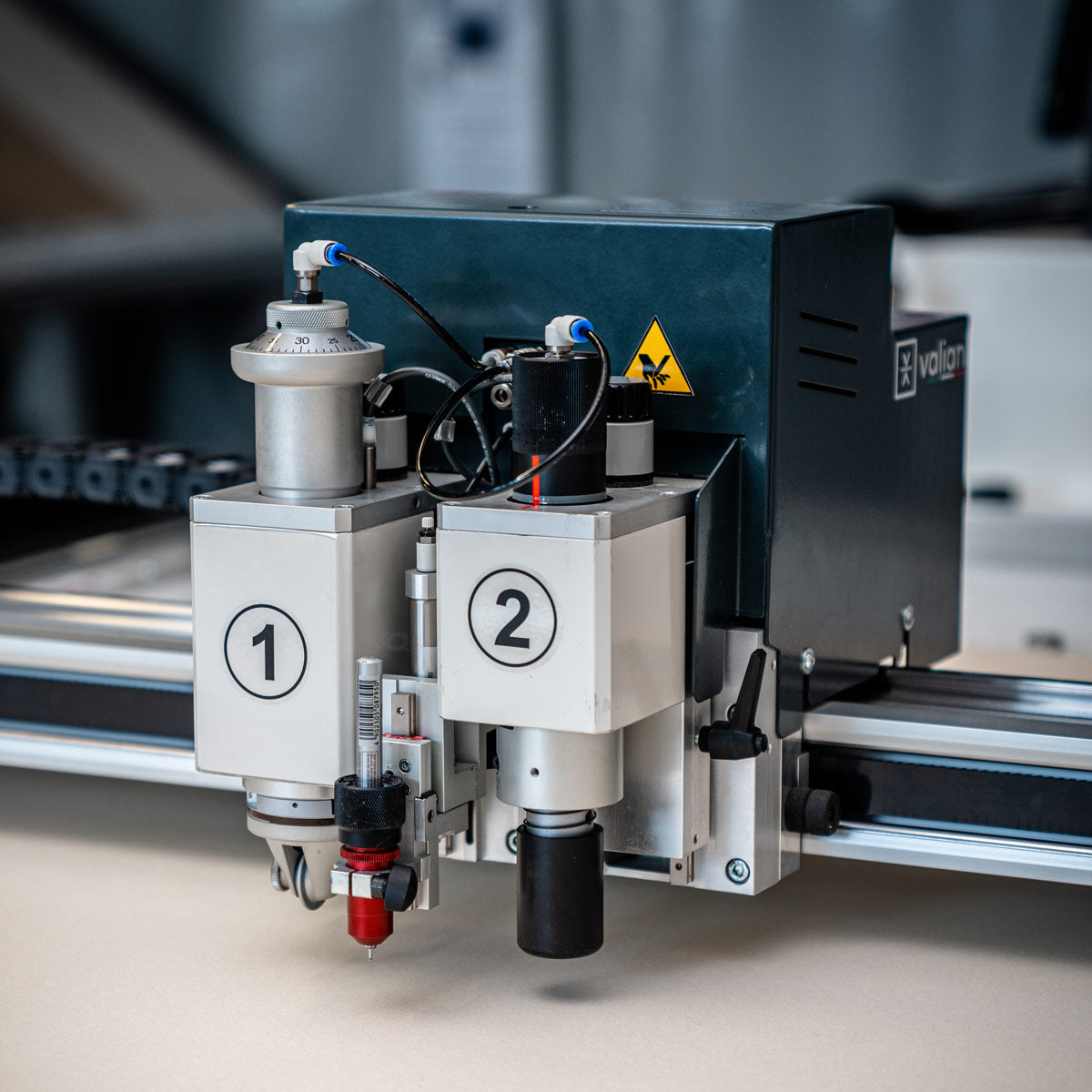

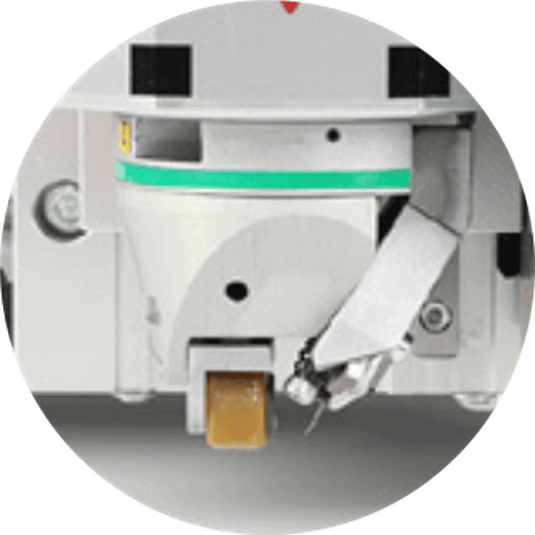

DUAL HEAD

CUT, CREASE, & DRAW

Two independent cutting heads plus an optional stationary pen tool:

2 Independent Heads

Bevel Cutting and Creasing

2 Independent Heads

Bevel Cutting and Creasing

90° Straight Cutting

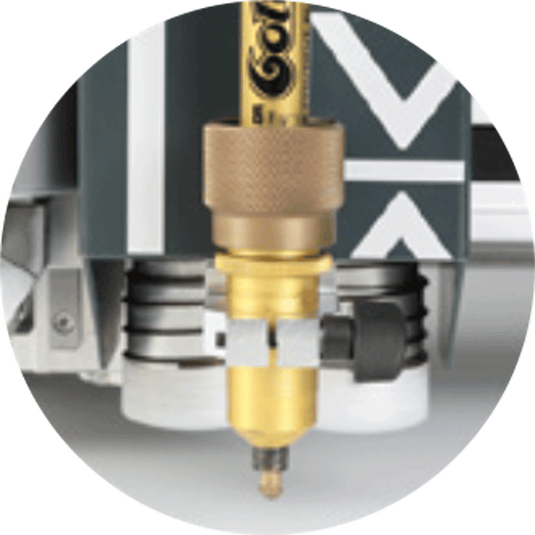

Optional Pen Drawing Tool

90° Straight Cutting

Optional Pen Drawing Tool



Maximus Builder

Configure Your Maximus

Explore catalog-listed options. Choose 80, 160, 250, or 265 V with our sales team; specifications vary by size.

1 Your starting point

Included

Maximus

Start with the dual-head platform. Select your cutting size with our sales team.

2 Machine Upgrades
Pneumatic Oscillating Tool Optional vibrating knife; cutting up to 0.79" (20 mm) requires a vacuum model.
Vacuum AssistMost Popular Vacuum-assisted holding on V models; standard on 265 V.
3 Tools, Equipment & Coverage
Dual-Head PlatformIncluded Two independent cutting heads, manual tool changes, and pneumatic button clamps.
Stationary Pen Tool Optional third stationary tool for pen decorations.
External PC Optional external PC listed in the catalog for data buffering.
5 Year WarrantyIncluded The catalog features a five-year warranty. Confirm coverage and terms with sales.

Your configuration

Maximus

Two independent cutting heads and pneumatic button clamps for professional framing, fine art printing, and conservation.

Pneumatic Oscillating Tool
Not added
Vacuum Assist
Added
Dual-Head Platform
Included
Stationary Pen Tool
Not added
External PC
Not added
5 Year Warranty
Included
Flexible financing options are available to help make your Valiani investment easier to manage. Learn More →
What the name means

MAXIMUS = the dual-head platform. Sizes: 80, 160, 250, and vacuum-only 265 V.

BASE Dual-head platform
V Vacuum table

TECHNICAL SPECIFICATIONS

MAXIMUS SERIES“V” designates the vacuum configuration.
Cutting Area80 / 80 V: 33.46" × 47.64" (850 × 1210 mm)
160 / 160 V: 63.78" × 47.64" (1620 × 1210 mm)
250 / 250 V: 98.43" × 48.03" (2500 × 1220 mm)
265 V: 104.33" × 61.02" (2650 × 1550 mm)
Max Speed26.26 in/sec (667 mm/sec)
Power Requirements80 / 160 / 250: Single-phase 200/208/230V, 50/60 Hz, 8A
80 V / 160 V: Single-phase 200/208/230V, 50/60 Hz, 14A
250 V: Three-phase 400V, 50/60 Hz, 10/12A
265 V: Not specified in catalog; confirm with sales.
Tools Available90°, 45°, 40°, embossing, creasing, and drawing tools. Optional pneumatic oscillating tool.
Cutting CapacityTangential tool: 0.004"–0.20" (0.1–5 mm)
Oscillating tool: 0.004"–0.79" (0.1–20 mm)
Up to 0.79" (20 mm) requires a vacuum model.
Width80 / 80 V: 63.78" (1620 mm)
160 / 160 V: 93.31" (2370 mm)
250 / 250 V: 128.35" (3260 mm)
265 V: 151.57" (3850 mm)
Depth80 / 80 V: 73.62" (1870 mm)
160 / 160 V: 73.23" (1860 mm)
250 / 250 V: 72.05" (1830 mm)
265 V: 88.58" (2250 mm)
HeightAll models: 49.61" (1260 mm)
Weight80: 970 lb (440 kg)
160: 1,014 lb (460 kg)
250: 1,279 lb (580 kg)
Weight - Vacuum80 V: 1,036 lb (470 kg)
160 V: 1,102 lb (500 kg)
250 V: 1,455 lb (660 kg)
265 V: 2,271 lb (1030 kg)
Acceleration80 / 160 / 250 and V versions: 33.46 in/sec² (0.85 m/sec²)
265 V: 39.37 in/sec² (1 m/sec²)
Power80 / 160 / 250: 1.7 kVA
80 V / 160 V: 2.8 kVA
250 V: 4.2/4.6 kVA
265 V: Not specified in catalog.
Air Requirements87 PSI (6 bar), 3.50 CFM (99 L/min)
With oscillating tool: 116 PSI (8 bar), 5.30 CFM (150 L/min)
265 V: Confirm installation requirements with sales.
Tool Holders2 + 1 fixed. Compatible with Multifunctional, i-Series, and Fixed Tool Holders. Manual tool change.
Media HoldingPneumatic button clamps; vacuum models add air suction. Optional fixed pen.
File FormatsSVG, PLT, DXF, CF2, HPGL, XML, PDF
ConnectivityEthernet; optional external PC for data buffering.

Maximus Series

Cutting Area
80 / 80 V: 33.46" × 47.64" (850 × 1210 mm)
160 / 160 V: 63.78" × 47.64" (1620 × 1210 mm)
250 / 250 V: 98.43" × 48.03" (2500 × 1220 mm)
265 V: 104.33" × 61.02" (2650 × 1550 mm)
Max Speed
26.26 in/sec (667 mm/sec)
Power Requirements
80 / 160 / 250: Single-phase 200/208/230V, 50/60 Hz, 8A
80 V / 160 V: Single-phase 200/208/230V, 50/60 Hz, 14A
250 V: Three-phase 400V, 50/60 Hz, 10/12A
265 V: Not specified in catalog; confirm with sales.
Tools Available
90°, 45°, 40°, embossing, creasing, and drawing tools. Optional pneumatic oscillating tool.
Cutting Capacity
Tangential tool: 0.004"–0.20" (0.1–5 mm)
Oscillating tool: 0.004"–0.79" (0.1–20 mm)
Up to 0.79" (20 mm) requires a vacuum model.
Width
80 / 80 V: 63.78" (1620 mm)
160 / 160 V: 93.31" (2370 mm)
250 / 250 V: 128.35" (3260 mm)
265 V: 151.57" (3850 mm)
Depth
80 / 80 V: 73.62" (1870 mm)
160 / 160 V: 73.23" (1860 mm)
250 / 250 V: 72.05" (1830 mm)
265 V: 88.58" (2250 mm)
Height
All models: 49.61" (1260 mm)
Weight
80: 970 lb (440 kg)
160: 1,014 lb (460 kg)
250: 1,279 lb (580 kg)
Weight - Vacuum
80 V: 1,036 lb (470 kg)
160 V: 1,102 lb (500 kg)
250 V: 1,455 lb (660 kg)
265 V: 2,271 lb (1030 kg)
Acceleration
80 / 160 / 250 and V versions: 33.46 in/sec² (0.85 m/sec²)
265 V: 39.37 in/sec² (1 m/sec²)
Power
80 / 160 / 250: 1.7 kVA
80 V / 160 V: 2.8 kVA
250 V: 4.2/4.6 kVA
265 V: Not specified in catalog.
Air Requirements
87 PSI (6 bar), 3.50 CFM (99 L/min)
With oscillating tool: 116 PSI (8 bar), 5.30 CFM (150 L/min)
265 V: Confirm installation requirements with sales.
Tool Holders
2 + 1 fixed. Compatible with Multifunctional, i-Series, and Fixed Tool Holders. Manual tool change.
Media Holding
Pneumatic button clamps; vacuum models add air suction. Optional fixed pen.
File Formats
SVG, PLT, DXF, CF2, HPGL, XML, PDF
Connectivity
Ethernet; optional external PC for data buffering.

Imperial equivalents are rounded from the catalog's metric values. Specifications are indicative and subject to change. The 265 V catalog table does not list electrical or air requirements; confirm installation details with sales.

Valiani Maximus catalog VIEW CATALOG

Compatible With

Materials

  • Matboard up to 0.20" (5 mm)
  • Foam board up to 0.20" (5 mm)
  • Gatorboard up to 0.20" (5 mm)
  • Corrugated cardboard
  • Grey chipboard
Materials

Designed For

Main Applications

  • Multiple-layer matboard
  • Nesting and pooling
  • Letters, text & clip art
  • Photo albums
  • Conservation or archival boxes
  • Memorabilia
  • Foam board strips / spacers
Main applications

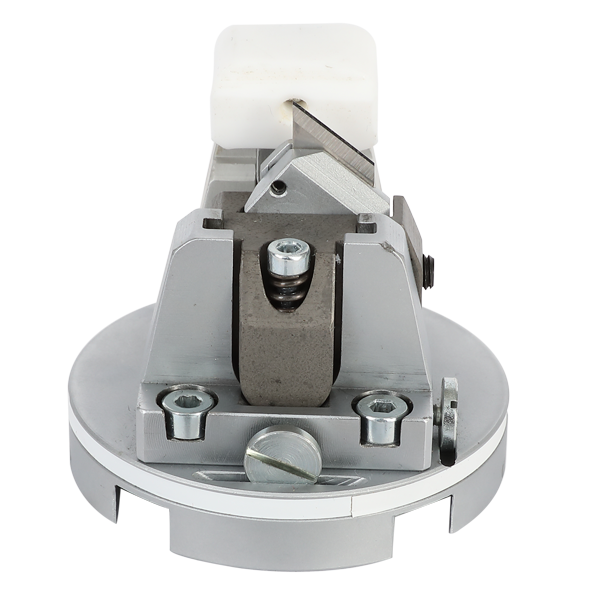

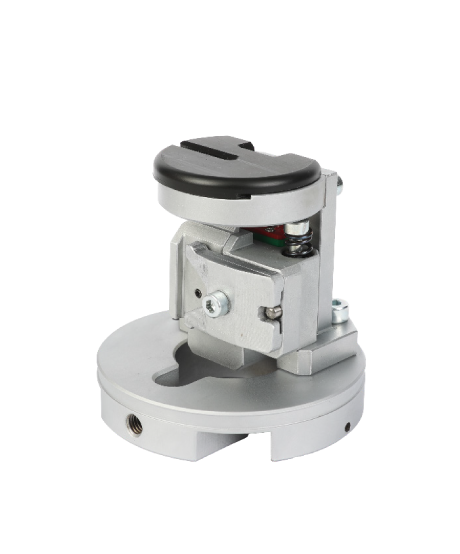

Interchangeable Heads

Expand your toolbox - Purchase new heads today!

90º Straight Cut

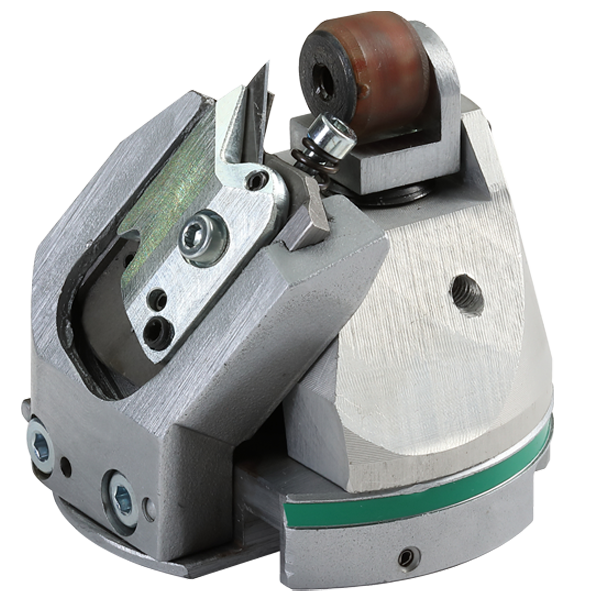

40° Bevel Cut

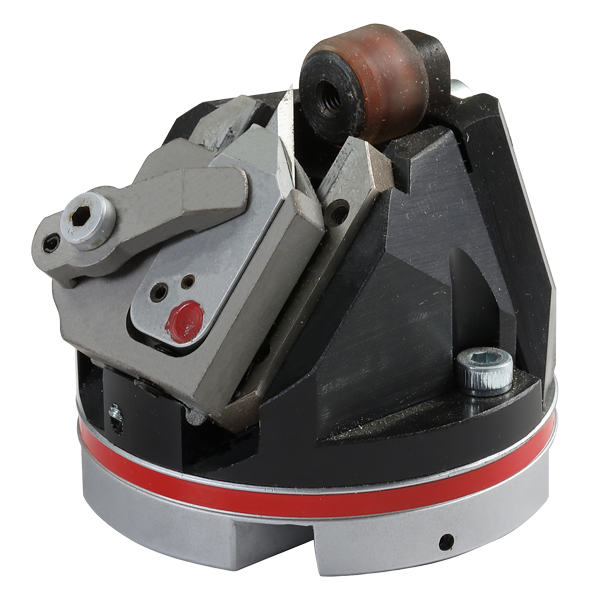

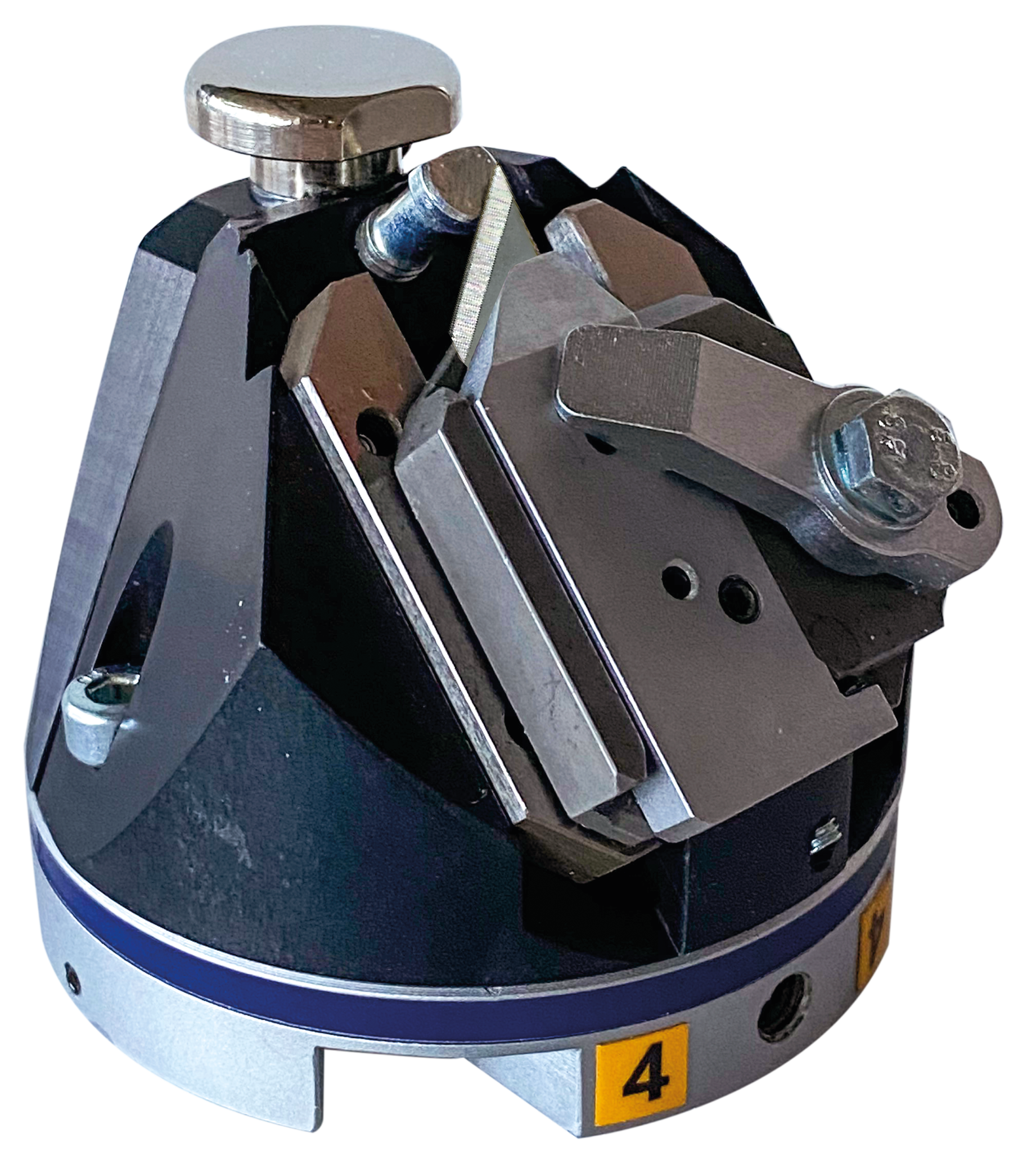

45° Bevel Cut

45° Bevel Cut

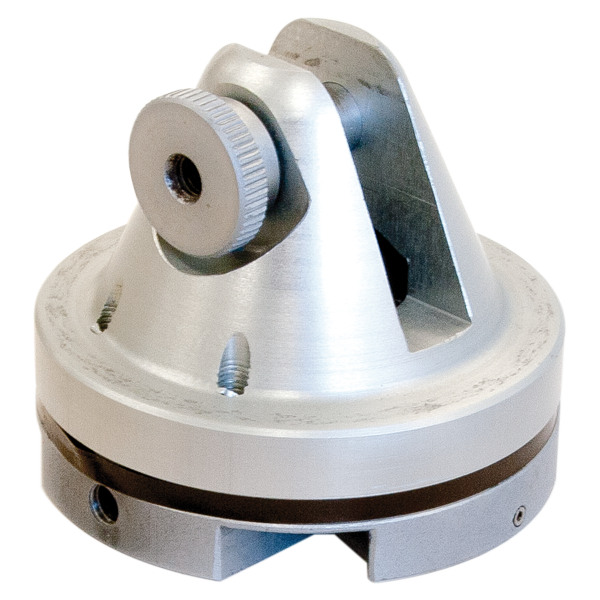

Creasing/Scoring

90° Straight Cut

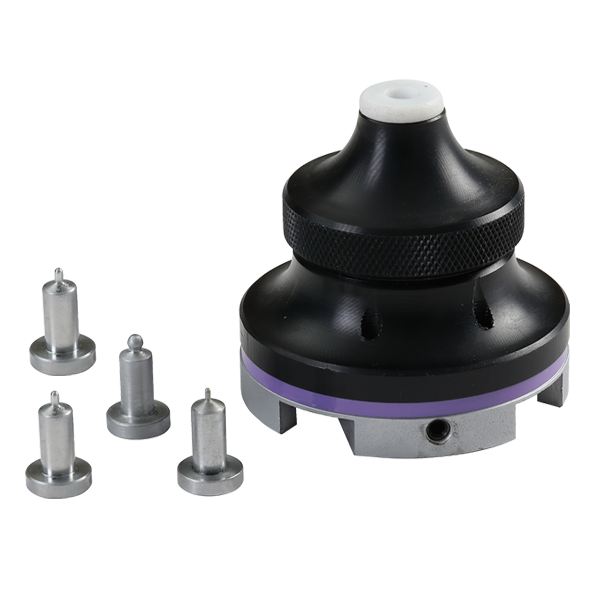

Embossing/Debossing

Is the Maximus the right machine for you?



Compare Machines

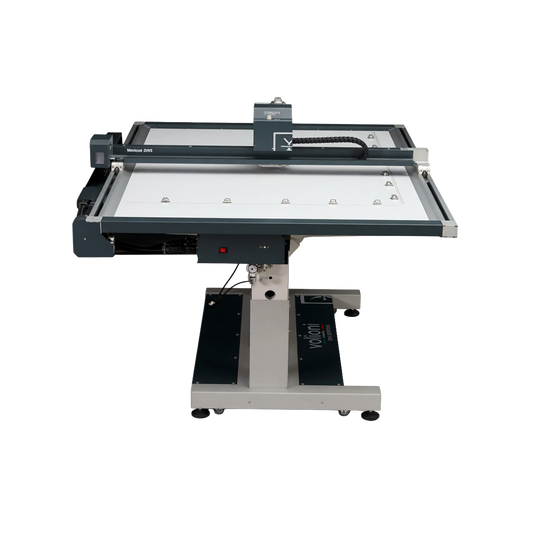

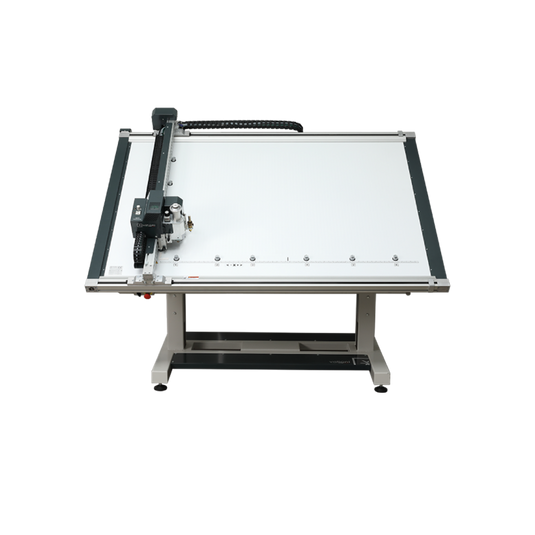

Nexus Edge
Nexus Edge Plus
Maximus

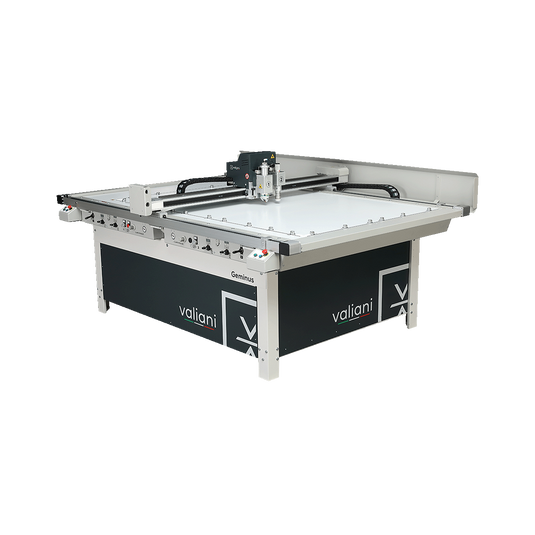

Geminus
Gladius

Ideal For

Custom framing and every day production

High-volume framing shops

Ultimate Production

Industrial Production

Oversized mat boards & custom framing

Performance

Professional performance

Up to 50% Faster Production

Maximum industrial performance

Continuous 24/7 high-speedproduction

Professional performance

Vacuum Table

Optional

Optional

Optional

Optional

Standard

3-in-1 Workflow

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Specialty Applications

Single/multiple openings, V-grooves, decorative cuts

Single/multiple openings, V-grooves, decorative cuts

Thicker material, foam boards, gatorboards, corrugated

Thicker material, foam boards, gatorboards, corrugated

XXL mat boards, nesting, multi-layer mats

Tool System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Material Thickness

Up to 6.6mm (0.26”)

Up to 6.6mm (0.26”)

Up to 20mm (.75”)

Up to 20mm (.75”)

Up to 6.6mm (0.26”)

Workstations

Single

Single

Dual

Dual

Single

Working Format

Standard

Standard

Large Format

Large Format

XXL

← NEXUS EDGE EXPLORE ALL MODELS GEMINUS →

Is this the right machine for you?

FAQs

  • Models: Maximus 80, 160, and 250 are available with pneumatic button clamps; 80 V, 160 V, and 250 V add vacuum assist. The oversized 265 V is vacuum-only.
  • Tools: two independent cutting heads, with an optional fixed pen and optional pneumatic oscillating tool.
  • Capacity: up to 0.20" (5 mm) with standard tools and up to 0.79" (20 mm) with the oscillating tool and a vacuum model.
  • Warranty: 5 years. Confirm coverage and terms with sales.
