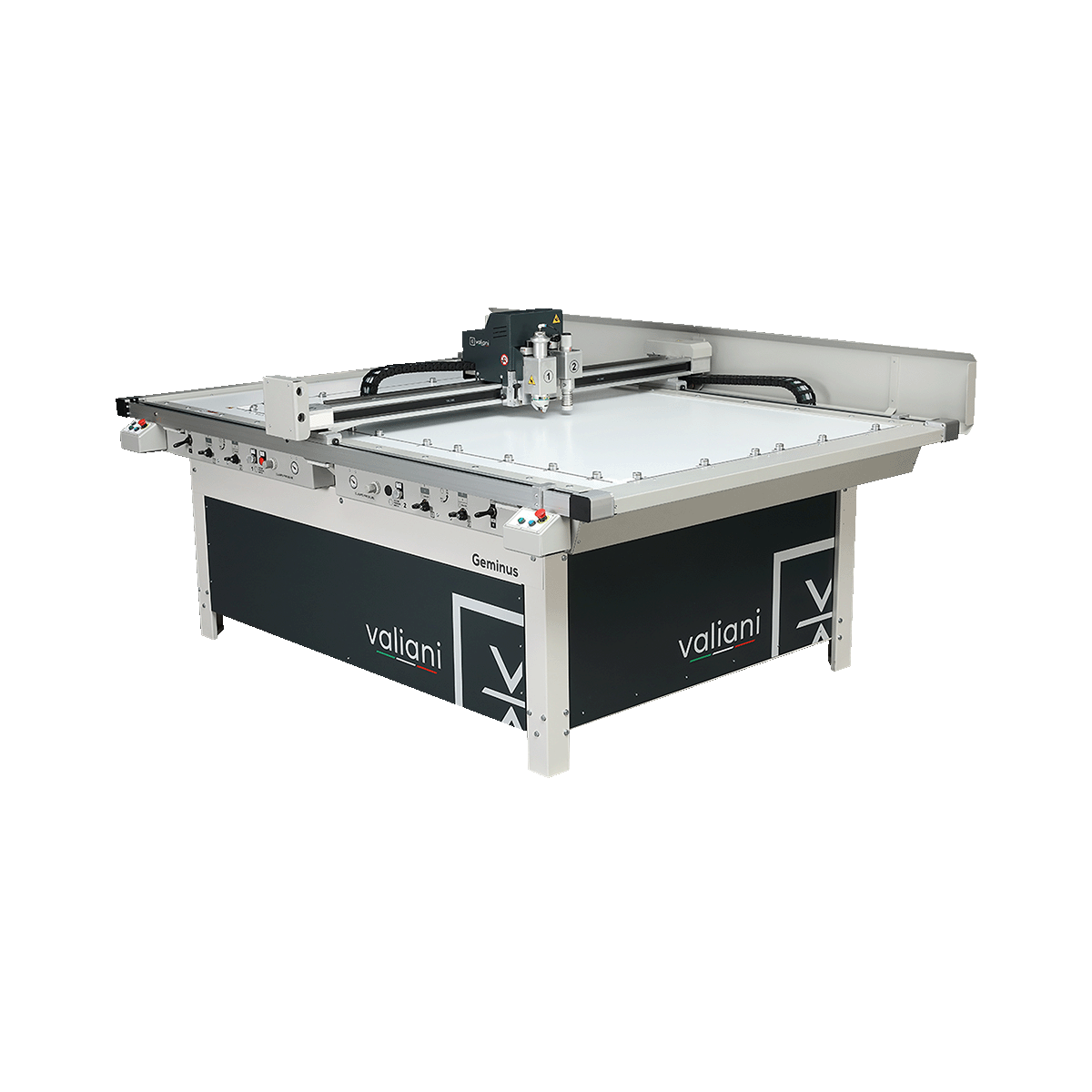

DUAL WORKSTATION, HIGH-SPEED PRODUCTION

Geminus V Series

Geminus V combines cutting precision with high-speed performance for demanding production. Its solid structure, dual workstations, and standard vacuum table support complex workflows and continuous 24/7 operation.

Dual Workstations

Two independent workstations and suction zones let you cut on one side while loading the other. Alternate between the two zones for a seamless production workflow.

High-Speed Performance

Cut at up to 39.37 in/sec (1000 mm/sec). A redesigned transmission, powerful motion controller, encoder-equipped stepper motors, and updated cutting-head assembly support high-volume production.

Dual Workstations

Two independent workstations and suction zones let you cut on one side while loading the other. Alternate between the two zones for a seamless production workflow.

High-Speed Performance

Cut at up to 39.37 in/sec (1000 mm/sec). A redesigned transmission, powerful motion controller, encoder-equipped stepper motors, and updated cutting-head assembly support high-volume production.

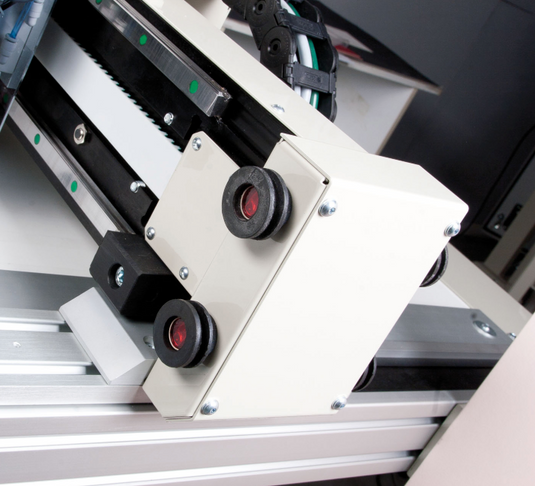

Infrared Safety Sensors

Front-mounted infrared safety sensors help protect operators across both the left and right workstations during production.

Vacuum Table as Standard

Geminus V comes with a vacuum table and pneumatic fold-away clamps as standard. The clamps hold material in place and establish the cutting origin.

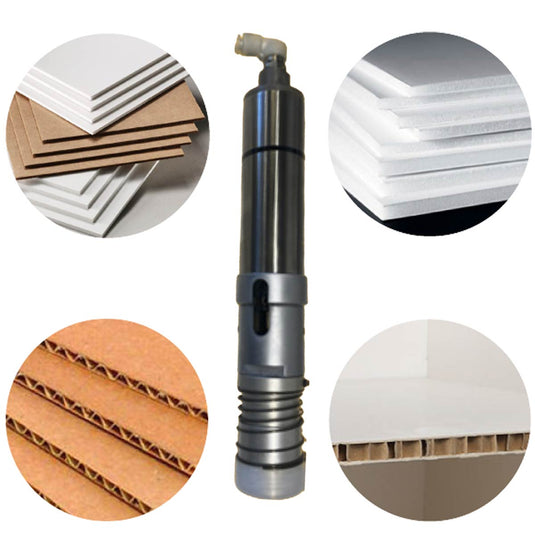

Oscillating Cutting Tool

Powerful pneumatic vibrating knife for cutting any shapes and various strengths of materials up to 3/4” (20mm)

Infrared Safety Sensors

Front-mounted infrared safety sensors help protect operators across both the left and right workstations during production.

Vacuum Table as Standard

Geminus V comes with a vacuum table and pneumatic fold-away clamps as standard. The clamps hold material in place and establish the cutting origin.

Oscillating Cutting Tool

Powerful pneumatic vibrating knife for cutting any shapes and various strengths of materials up to 3/4” (20mm)

DUAL HEAD

CUT, CREASE, & DRAW

Two cutting heads with an optional fixed pen tool for demanding, multi-tool workflows:

40° & 45° Bevel Cutting

90° Straight Cutting

40° & 45° Bevel Cutting

90° Straight Cutting

Dual Head + Optional Pen

Optional Pen Drawing Tool

Dual Head + Optional Pen

Optional Pen Drawing Tool

Geminus V Builder

Configure Your Geminus V

Explore catalog-listed options. Choose the 190 V or 250 V cutting size with our sales team.

1 Your starting point

Included

Geminus V

Start with dual workstations and a vacuum table as standard. Select your cutting size with our sales team.

2 Machine Upgrades
Pneumatic Oscillating Tool Optional vibrating knife for materials up to 0.79" (20 mm) thick.
Crop-Mark Camera Optional camera for crop-mark detection.
3 Tools, Equipment & Coverage
Standard EquipmentIncluded Dual heads, dual workstations, vacuum table, and pneumatic fold-away clamps.
Fixed Pen Tool Optional stationary pen for drawing and decorations.
External PCIncluded Optional external PC listed in the catalog for data buffering.
1 Year WarrantyIncluded Geminus includes a 1-year warranty. Confirm coverage and terms with sales.

Your configuration

Geminus V

Dual cutting heads, two independent workstations, a vacuum table, and pneumatic fold-away clamps for high-volume production.

Pneumatic Oscillating Tool
Not added
Crop-Mark Camera
Not added
Standard Equipment
Included
Fixed Pen Tool
Not added
External PC
Included
1 Year Warranty
Included
Flexible financing options are available to help make your Valiani investment easier to manage. Learn More →
What the name means

GEMINUS V = the dual-workstation platform with vacuum as standard. Available in 190 V and 250 V sizes.

GEMINUS V Dual workstations + standard vacuum

TECHNICAL SPECIFICATIONS

GEMINUS V SERIESVacuum table is standard on both models.
Cutting Area190 V: 75.00" × 48.43" (1905 × 1230 mm)
250 V: 100.00" × 48.43" (2540 × 1230 mm)
Max Speed39.37 in/sec (1000 mm/sec)
Power RequirementsThree-phase 400V, 50/60 Hz, 10/12A
Tools Available90°, 45°, 40°, embossing, creasing, and drawing tools. Optional pneumatic oscillating tool.
Cutting CapacityTangential tool: 0.004"–0.20" (0.1–5 mm)
Optional oscillating tool: 0.004"–0.79" (0.1–20 mm)
Width190 V: 100.39" (2550 mm)
250 V: 130.12" (3305 mm)
DepthBoth models: 75.79" (1925 mm)
HeightBoth models: 49.21" (1250 mm)
Weight190 V: 1,146 lb (520 kg)
250 V: 1,367 lb (620 kg)
Acceleration78.74 in/sec² (2 m/sec²)
Power4.2/4.6 kVA
Air Requirements87 PSI (6 bar), 3.50 CFM (99 L/min)
With oscillating tool: 116 PSI (8 bar). Oscillating-tool air flow is not specified in the catalog; confirm with sales.
Tool Holders2 + 1 fixed. Compatible with Multifunctional, i-Series, and Fixed Tool Holders. Manual tool change.
Media HoldingPneumatic fold-away button clamps and vacuum table as standard.
WorkstationsTwo independent workstations with two independent suction zones.
File FormatsSVG, PLT, DXF, CF2, HPGL, XML, PDF
ConnectivityEthernet; optional external PC for data buffering.
Optional EquipmentPneumatic oscillating tool, crop-mark detection camera, fixed pen tool, and external PC.
Warranty1 year. Confirm coverage, exclusions, and terms with sales.

Geminus V Series

Cutting Area
190 V: 75.00" × 48.43" (1905 × 1230 mm)
250 V: 100.00" × 48.43" (2540 × 1230 mm)
Max Speed
39.37 in/sec (1000 mm/sec)
Power Requirements
Three-phase 400V, 50/60 Hz, 10/12A
Tools Available
90°, 45°, 40°, embossing, creasing, and drawing tools. Optional pneumatic oscillating tool.
Cutting Capacity
Tangential tool: 0.004"–0.20" (0.1–5 mm)
Optional oscillating tool: 0.004"–0.79" (0.1–20 mm)
Width
190 V: 100.39" (2550 mm)
250 V: 130.12" (3305 mm)
Depth
Both models: 75.79" (1925 mm)
Height
Both models: 49.21" (1250 mm)
Weight
190 V: 1,146 lb (520 kg)
250 V: 1,367 lb (620 kg)
Acceleration
78.74 in/sec² (2 m/sec²)
Power
4.2/4.6 kVA
Air Requirements
87 PSI (6 bar), 3.50 CFM (99 L/min)
With oscillating tool: 116 PSI (8 bar). Oscillating-tool air flow is not specified in the catalog; confirm with sales.
Tool Holders
2 + 1 fixed. Compatible with Multifunctional, i-Series, and Fixed Tool Holders. Manual tool change.
Media Holding
Pneumatic fold-away button clamps and vacuum table as standard.
Workstations
Two independent workstations with two independent suction zones.
File Formats
SVG, PLT, DXF, CF2, HPGL, XML, PDF
Connectivity
Ethernet; optional external PC for data buffering.
Optional Equipment
Pneumatic oscillating tool, crop-mark detection camera, fixed pen tool, and external PC.
Warranty
1 year. Confirm coverage, exclusions, and terms with sales.

Imperial equivalents are rounded from the catalog's metric values. Specifications are indicative and subject to change. Confirm installation requirements with sales.

Valiani Geminus V catalog VIEW CATALOG

Compatible With

Materials

  • Matboard up to 0.20" (5 mm)
  • Foam board up to 0.20" (5 mm)
  • Gatorboard up to 0.20" (5 mm)
  • Corrugated cardboard
  • Grey chipboard
Materials

Designed For

Main Applications

  • Panoramic picture frame mats
  • Custom picture frame mats
  • Conservation and archival boxes
  • Memorabilia
  • Thick foam board and honeycomb board
Main applications

Interchangeable Heads

Expand your toolbox - Purchase new heads today!

90º Straight Cut

40° Bevel Cut

45° Bevel Cut

45° Bevel Cut

Creasing/Scoring

90° Straight Cut

Embossing/Debossing

Is the Geminus V the right machine for you?



Compare Machines

Nexus Edge
Nexus Edge Plus
Maximus

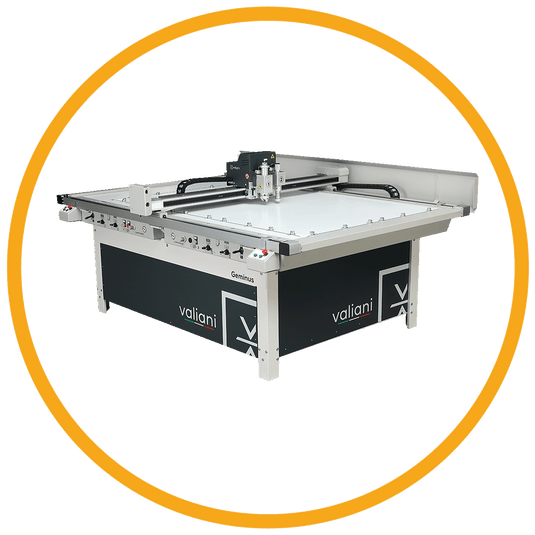

Geminus
Gladius

Ideal For

Custom framing and everyday production

High-volume framing shops

Ultimate Production

Industrial Production

Oversized mat boards & custom framing

Performance

Professional performance

Up to 50% Faster Production

Maximum industrial performance

Continuous 24/7 high-speedproduction

Professional performance

Vacuum Table

Optional

Optional

Optional

Optional

Standard

3-in-1 Workflow

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Cut, draw, & trim in one operation

Specialty Applications

Single/multiple openings, V-grooves, decorative cuts

Single/multiple openings, V-grooves, decorative cuts

Thicker material, foam boards, gatorboards, corrugated

Thicker material, foam boards, gatorboards, corrugated

XXL mat boards, nesting, multi-layer mats

Tool System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Valiani Interchangeable Head System

Material Thickness

Up to 6.6mm (0.26”)

Up to 6.6mm (0.26”)

Up to 20mm (.75”)

Up to 20mm (.75”)

Up to 6.6mm (0.26”)

Workstations

Single

Single

Dual

Dual

Single

Working Format

Standard

Standard

Large Format

Large Format

XXL

← MAXIMUS EXPLORE ALL MODELS GLADIUS →

Is this the right machine for you?

FAQs

  • Standard equipment: dual cutting heads, two workstations with independent suction zones, a vacuum table, pneumatic fold-away clamps, and front-mounted infrared safety sensors.
  • Sizes: 190 V and 250 V.
  • Options: pneumatic oscillating tool, crop-mark detection camera, fixed pen, and external PC.
  • Warranty: Geminus has a 1-year warranty. Confirm coverage and terms with sales.
